General Information
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: GV-N506TWF2MAXOC16GD
Manufacturer Website Address: http://www.gigabyte.us
Brand Name: GIGABYTE
Product Model: GV-N506TWF2MAX OC-16GD

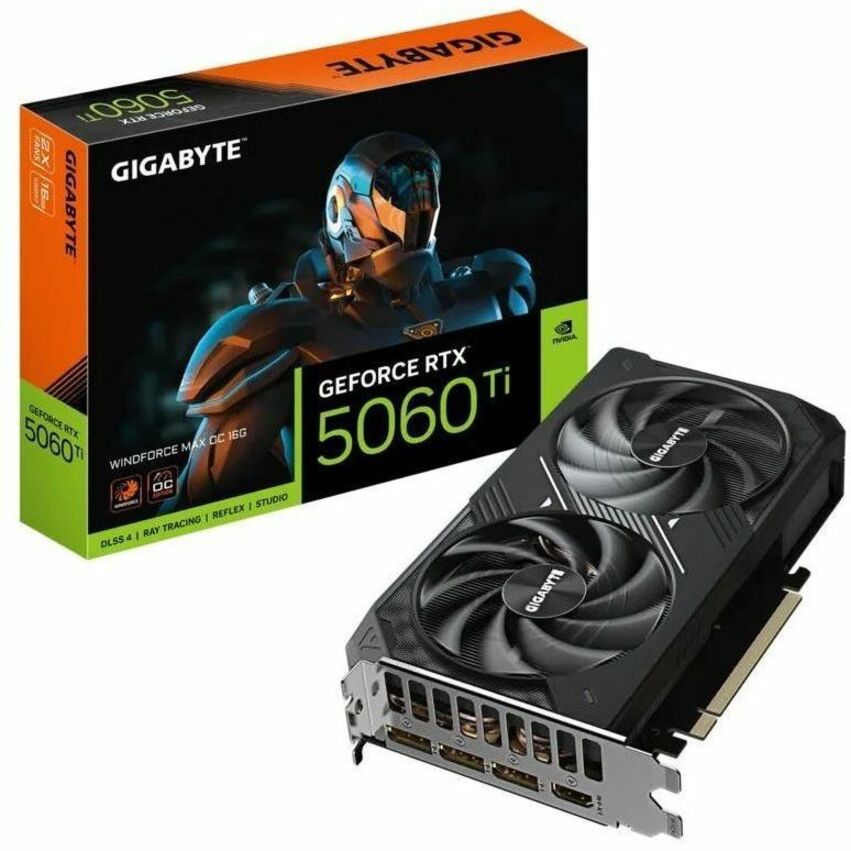

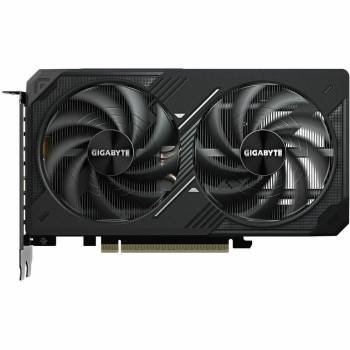

Product Name: GeForce RTX 5060 Ti WINDFORCE MAX OC 16G Graphic Card
Marketing Information:
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
Product Type: Graphic Card
Technical Information
API Supported:
Number of Monitors Supported: 4
Features:
- Dual-fan Cooler
- Ray Tracing
Maximum Digital Display Resolution: 7680 x 4320
CUDA Cores: 4608
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: NVIDIA
Chipset Line: GeForce
Chipset Series: RTX
Chipset Model: RTX 5060 Ti
GPU Clock: 2.59 GHz
Memory
Standard Memory: 16 GB
Memory Technology: GDDR7
Bus Width: 128 bit
Interfaces/Ports
Host Interface: PCI Express 5.0

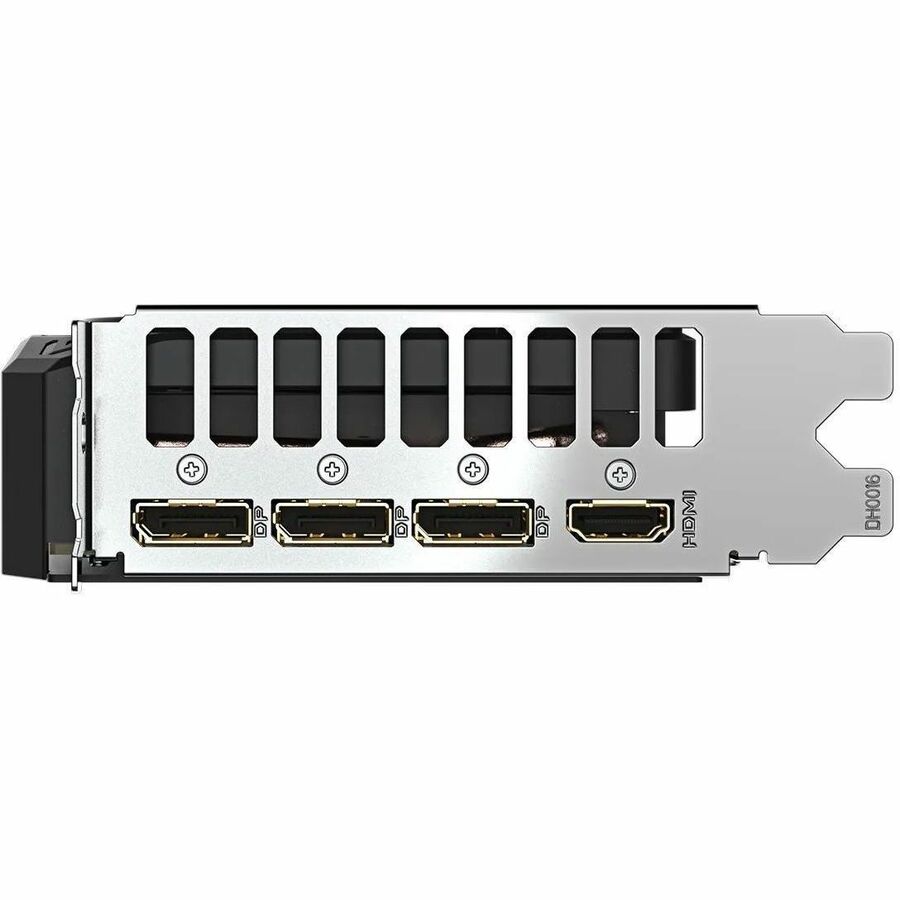

DisplayPort: Yes
Number of DisplayPort Outputs: 3
HDMI: Yes
Number of HDMI Outputs: 1
Power Description
Power Supply Wattage: 650 W

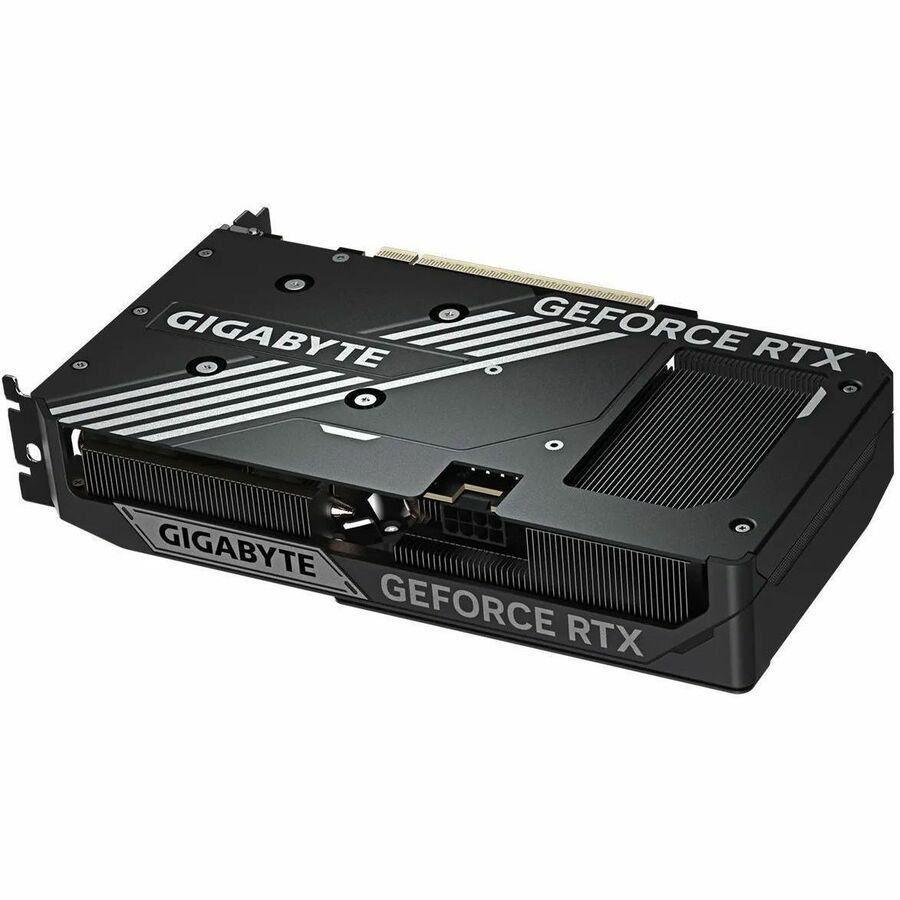

Power Connector: 1x 8-pin
Physical Characteristics
Form Factor: Plug-in Card
Cooler Type: Active Cooler
Height: 1.6"
Width: 4.7"
Length: 8.2"
Miscellaneous
Platform Supported: PC
