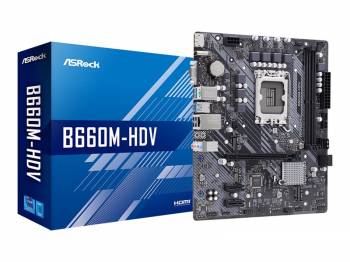

Product Type: Motherboard - micro ATX

Chipset Type: Intel B660

Processor Socket: LGA1700 Socket

Max Processors Qty: 1

Compatible Processors: (supports 12th Generation Intel Core)

Max Size: 64 GB

Technology: DDR4

Bus Clock: 5066 MHz (O.C.)

Supported RAM Integrity Check: Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered: Unbuffered

Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode

Type: HD Audio (8-channel)

Audio Codec: Realtek ALC887/ALC897

Compliant Standards: High Definition Audio

Network Controller: Intel I219V

Network Interfaces: Gigabit Ethernet

Expansion Slots: 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)

Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2

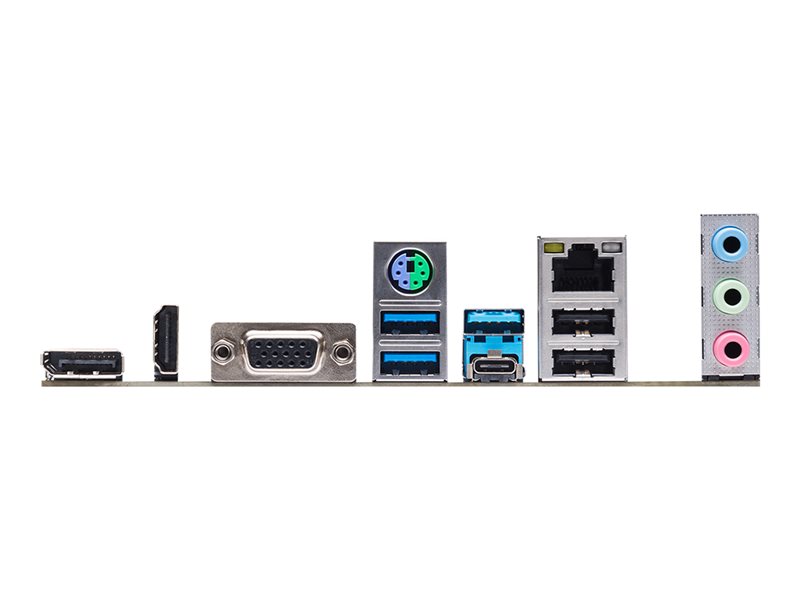

Interfaces: 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C Gen1

Internal Interfaces: 1 x audio - header ¦ 3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header

Power Connectors: 24-pin main power connector, 8-pin ATX12V connector

BIOS Type: AMI

BIOS Features: Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support

Hardware Monitoring: CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer

Sleep / Wake Up: Wake on LAN (WOL)

Hardware Features: ASRock Instant Flash, HDCP compliant, 6 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock Hyper M.2, Intel Hybrid Technology

Included Accessories: I/O back plate, 3 x M.2 screws

Cables Included: 2 x Serial ATA cable

Software Included: Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN

Compliant Standards: FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3

Width: 9.6 in

Depth: 7.9 in
